Three Windows apps. One room.

Design the build. Program the lights. Run the show.

Draftworks draws the venue. Raedia Lighting plots and programs the rig. Raedia plays the pictures on the projectors and LED walls. Each app installs on its own. There is no combined suite installer. Buy one licence, or put all three in the cart and pay each one.

Buy the suite Get the downloads

Product render of an empty concert theatre — seating, lighting truss, and a dark stage. Not a client project. — The house, before doors. Draftworks product render — not a client project.

1 · Draftworks

Design the build

Draw the house, the rig and the building in one Windows file.

2 · Raedia Lighting

Plot and program the lights

Patch, record cues, and send the look. A Draftworks drawing comes in as MVR.

3 · Raedia

Run the show

Mix the pictures live and map regions onto the surfaces in the room.

Draftworks

Design the build.

Draft, design and model in one. Built for live events first, then architecture and full studio 3D. Venue plans, stage plots, seating and egress checks, rigging reports and pick lists.

Core: Drafting and DXF.
Events: Venues, seating, egress, rigging, pick lists.
Architecture: Walls, openings, storeys and sections.
Studio: Those layers, plus solids, Booleans and constraints.

Add Draftworks usedraftworks.com

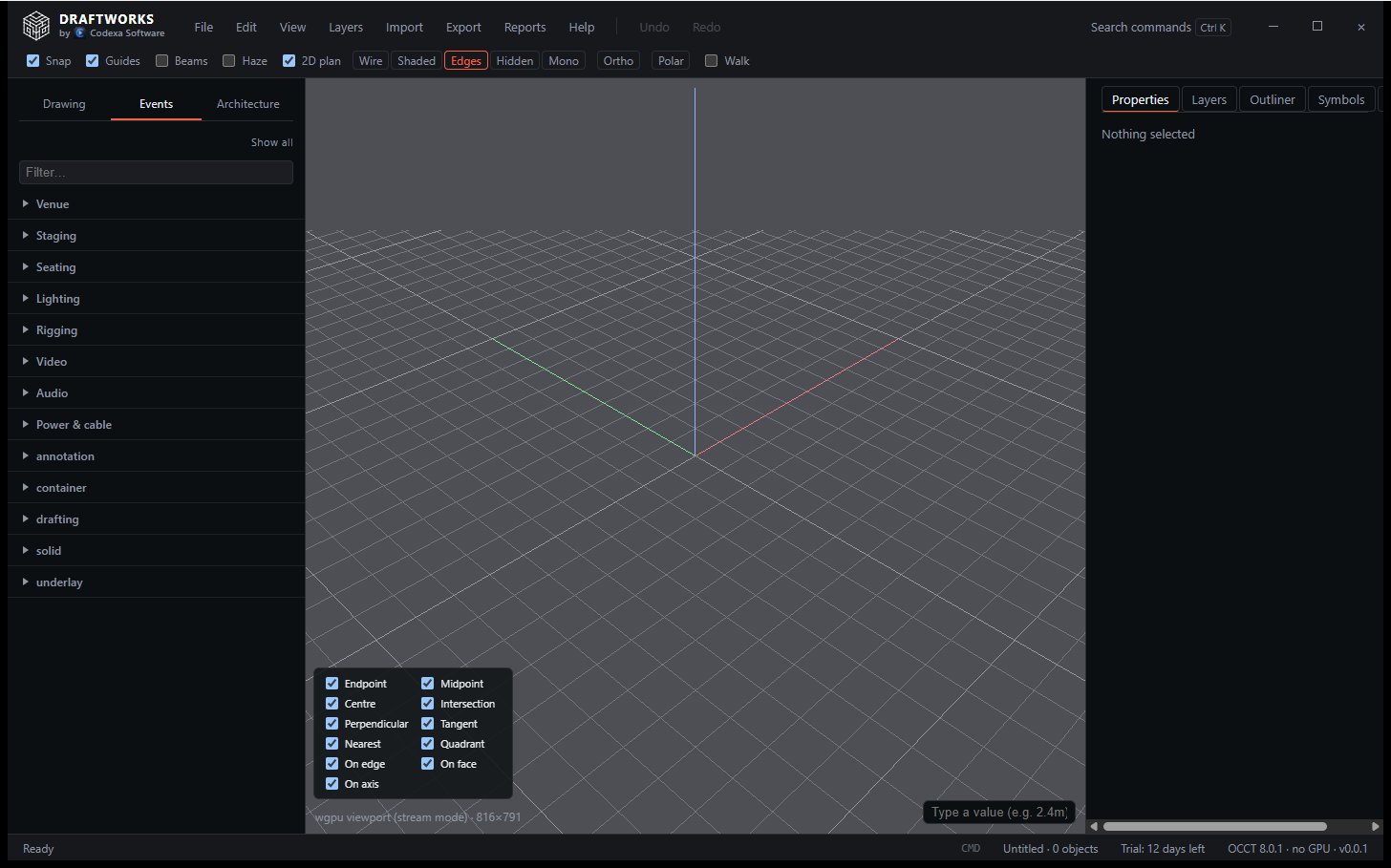

Real Draftworks window — Events tool groups beside the viewport — The actual window.

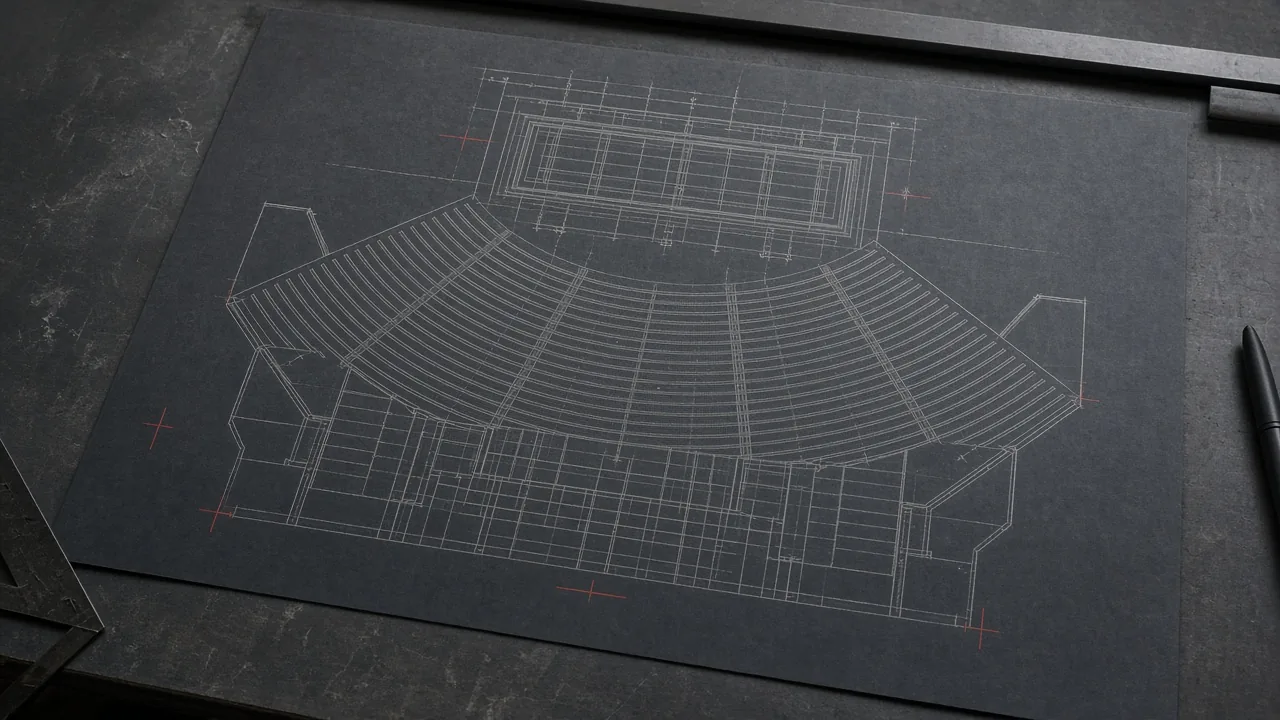

Product render of a venue ground plan — stage, seating rows, and a truss grid — Venue plan. Product render.

Product render of truss, spotlights, and a line array over a dark stage — The rig. Product render.

Raedia Lighting

Plot and program the lights.

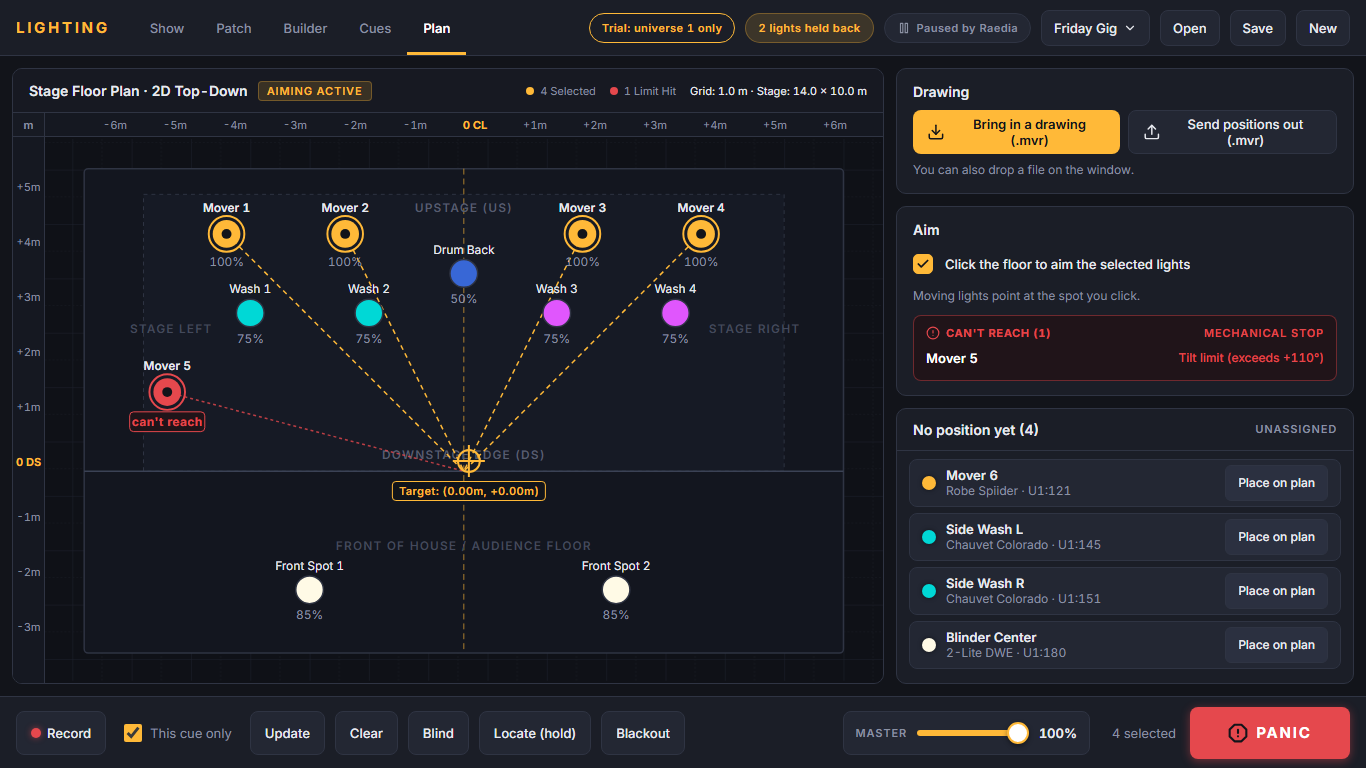

The lighting desk in the Raedia suite. Patch lights, record cues, send the look on sACN or Art-Net. Five screens: Show, Patch, Builder, Cues, Plan. The library ships 541 fixtures from the Open Fixture Library. A Draftworks drawing comes in as MVR.

Trial: Confirm your email, then paste the key. A trial key sends universe 1. The zip alone sends nothing.
Paid: One product, monthly or buy once. A paid licence sends 16 universes. The amount comes from the Ops Hub.

Add Lighting raedialighting.com

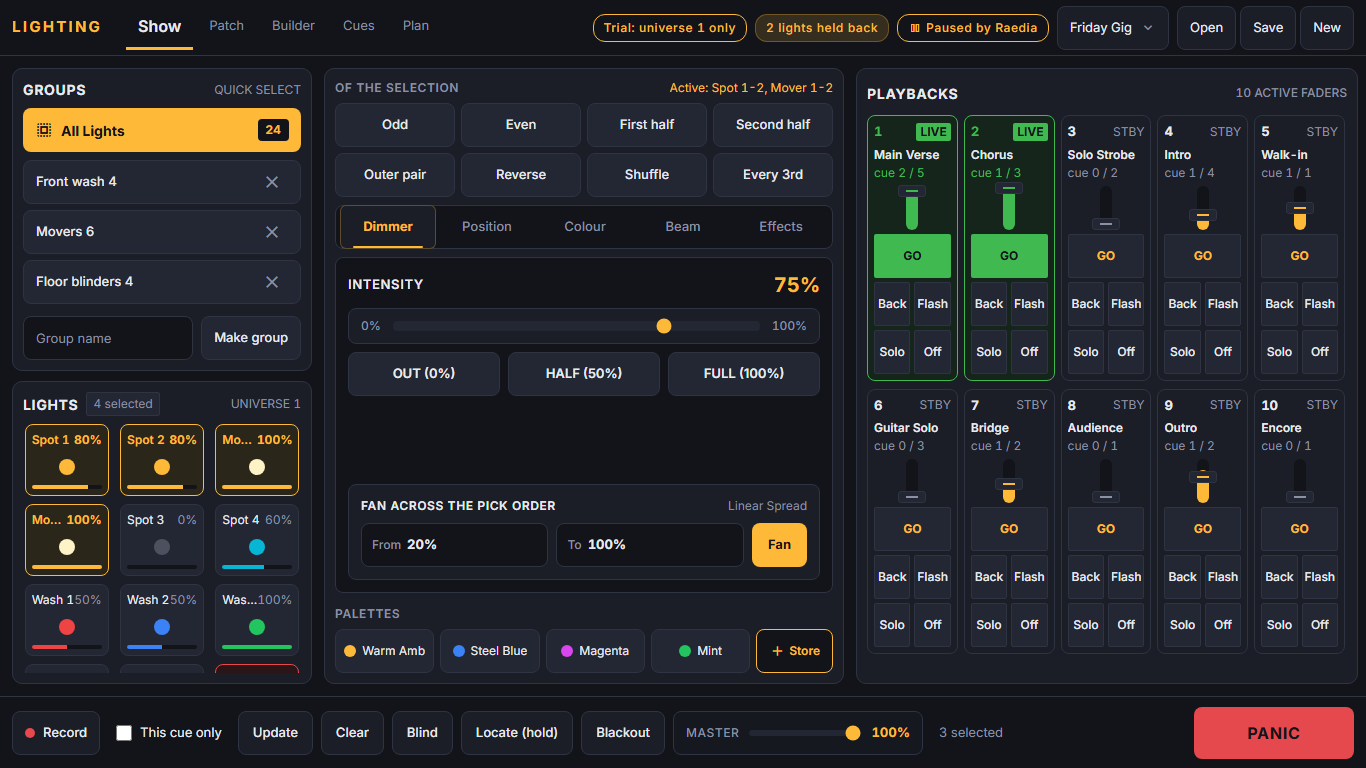

Show screen of Raedia Lighting — Show. Groups, dimmer, colour, beam, playbacks.

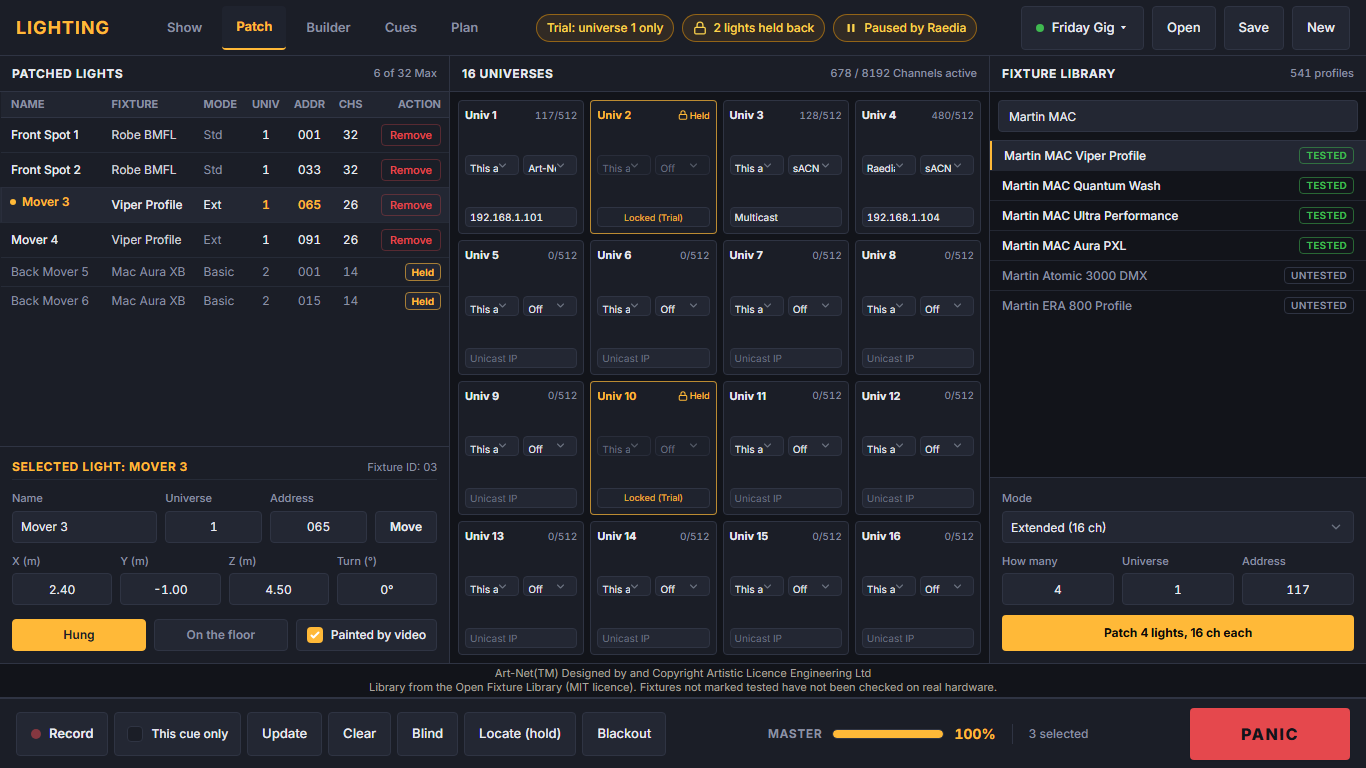

Patch screen of Raedia Lighting — Patch. Off, sACN or Art-Net.

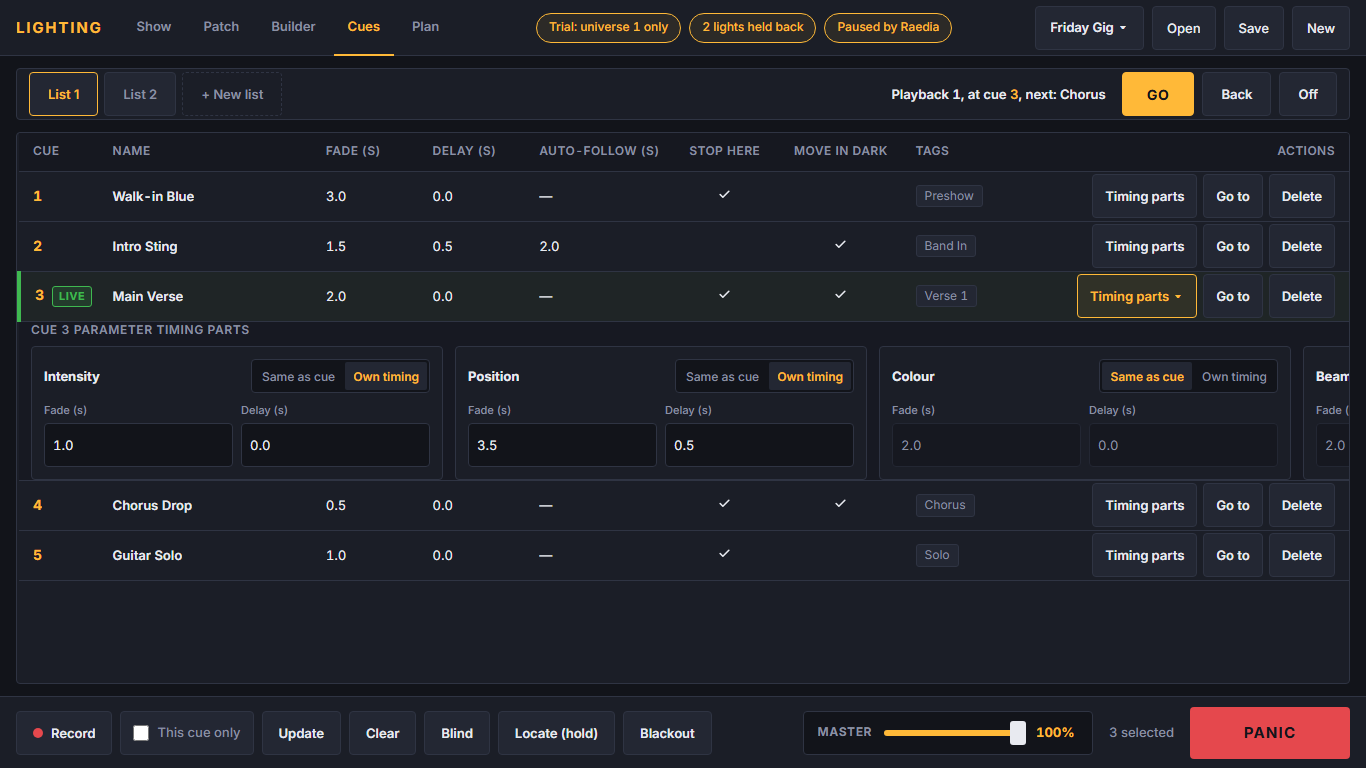

Cues screen of Raedia Lighting — Cues. GO, Back and Off.

Raedia

Run the show.

A GPU-native media server for live visuals. Mix clips live, map regions onto projectors and LED walls, and control it by MIDI, OSC or DMX. Core plays visuals full frame on one screen. Pro also maps them onto surfaces, adds extra screens, links to the lighting desk and puts the show on your phone.

Trial: 7 days, the full Pro version, no watermark. Confirm the email, then paste the key.
Licence: One computer. Pay monthly, or buy once and keep it, with a year of updates.

Add Raedia raedia.dev

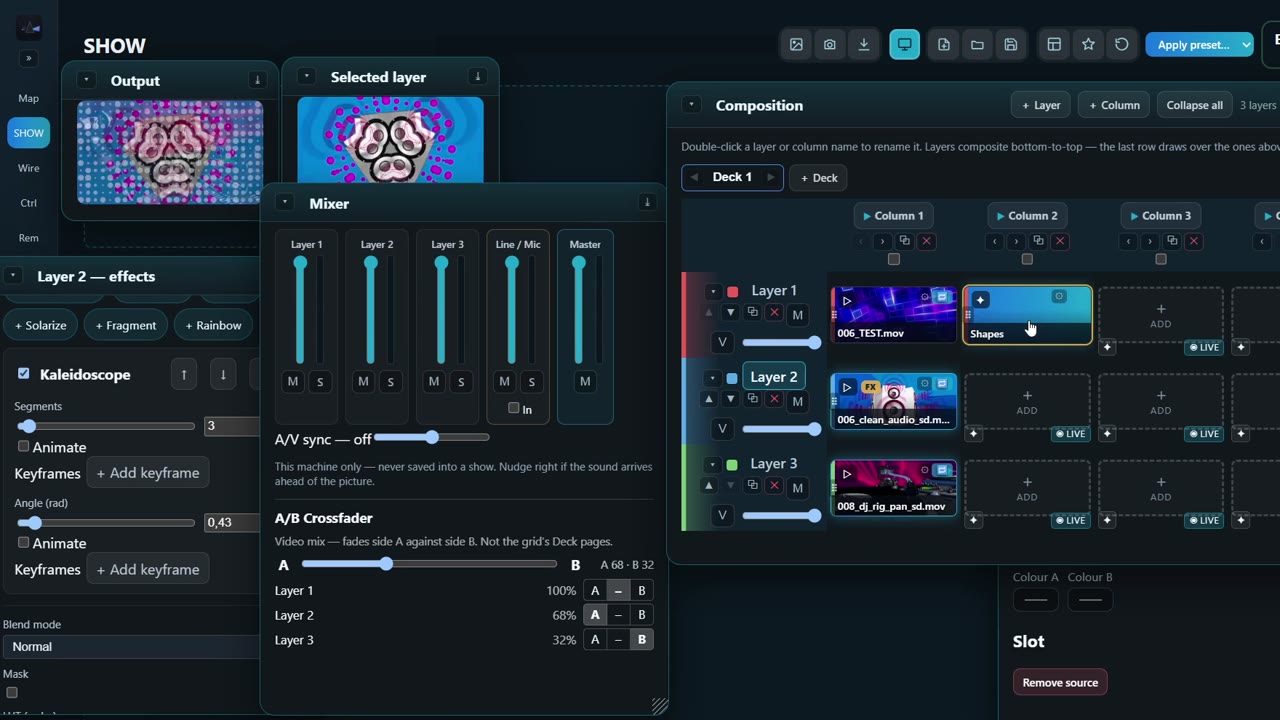

Raedia user guide — set up and run your first show — Raedia user guide, on the Raedia channel. Nothing loads until you press play.

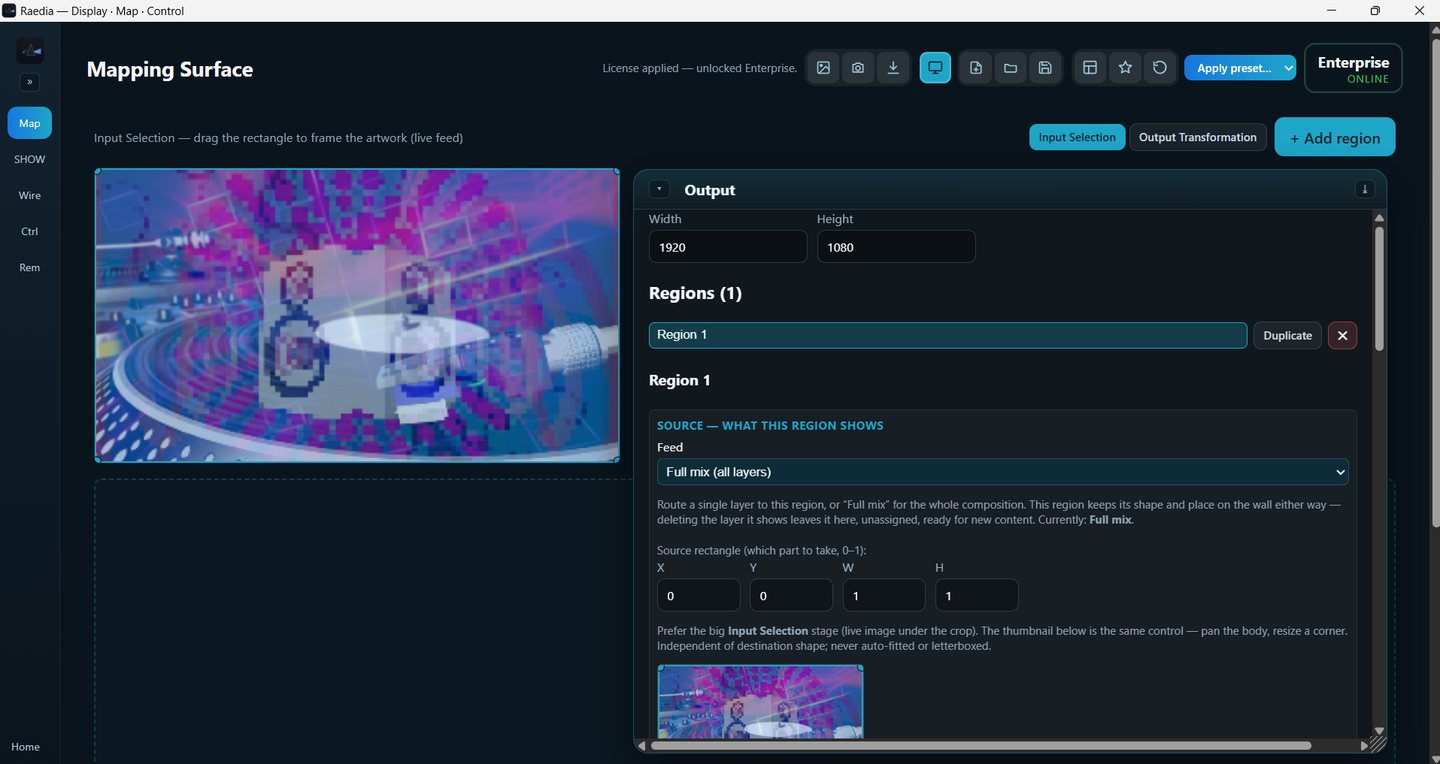

Raedia mapping a region onto a surface — Map a region onto a surface.

Three downloads. One cart.

They talk on this PC. You install the product you need. Prices on the buy page come from the Ops Hub. The page does not invent a bundle discount, and it does not send a price — the Hub decides the charge.

Open the cart Windows downloads

Art-Net™ Designed by and Copyright Artistic Licence Engineering Ltd. Fixture data from the Open Fixture Library (open-fixture-library.org), MIT License, Copyright (c) 2017 Florian & Felix Edelmann. Art-Net OEM is not claimed as granted.
